Fiber optic sensing system

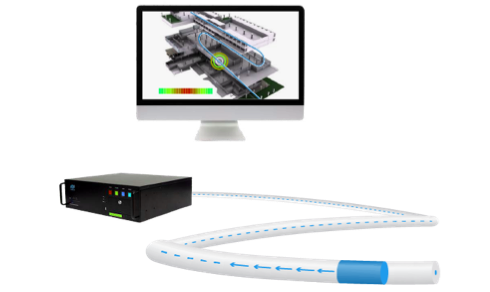

The LEVEL BONTEL fiber optic sensing system is a firefighting device with the functions of storing information on the condition of the protected object. The use of such a fiber optic sensing system allows you to control the temperature parameters of the environment, changes in which can lead to fires, as well as to develop action algorithms to prevent fires.
The LEVEL BONTEL a fiber optic sensing system is compatible with absolutely any fire automation system and also enables connection of up to 8 channels with total length of up to 40 km.
Due to its unique properties, LEVEL BONTEL can be used both instead of smoke and heat detectors in fire alarm systems and instead of fire extinguishing installations at various facilities, when developing STS and the corresponding compensating measures.
.png)
- Easy installation
- Minimization of equipment
- Multifunctional control
- Unaffected by electromagnetic fields
- No active electronic components
- Reduces maintenance costs
- Measurement sensitivity up to 0.1 °C in the protected zone.
- Easy installation
- Minimization of equipment
- Multifunctional control
- Unaffected by electromagnetic fields
- No active electronic components
- Reduces maintenance costs
- Measurement sensitivity up to 0.1 °C in the protected zone.
The LEVEL BONTEL fiber optic sensing system is a firefighting device with the functions of storing information on the condition of the protected object. The use of such a fiber optic sensing system allows you to control the temperature parameters of the environment, changes in which can lead to fires, as well as to develop action algorithms to prevent fires.
The LEVEL BONTEL a fiber optic sensing system is compatible with absolutely any fire automation system and also enables connection of up to 8 channels with total length of up to 40 km.
Due to its unique properties, LEVEL BONTEL can be used both instead of smoke and heat detectors in fire alarm systems and instead of fire extinguishing installations at various facilities, when developing STS and the corresponding compensating measures.
Project solutions
Application areas
Operating principle
- 1Like neurons, the impulses received from each meter of LEVEL fiber are transferred to the LEVEL head unit for processing and decision-making for further action. The signal processed by the software can be displayed as diagrams or overlaid on the plans (diagrams) of the protected object to visually locate the event that occurred, to within three meters.
- 2The temperature measurement is based on the measurement of optical Raman backscatter using optical time domain OTDR.
.png)
Product video
Additional information
Основные преимущества
- Срок службы оптического кабеля 25 лет, оборудования более 20 лет;
- Необслуживаемая линейная часть;
- Неэлектрическое средство измерения;
- Оптический кабель не подвержен климатическим воздействиям, электромагнитным полям и воздействиям, устойчив в присутствии тяжелых металлов;
- Стандартный ВОК применяется в экстремальных условиях от -60 до +80°С;
- Возможность изготовления кабеля к стойкости по температуре до 1000°С;
- Измеряемый температурный диапазон -200 до +600°С;
- Дискретность измерения от 0,5м;
- Измеряемое расстояние до 40 км на один канал;
- Количество увеличения каналов до 16;
- Передача Тс и Ти по МЭК 60870-5-104. Протоколы подключения к любым системам. (К АСУТП и SCADA):
